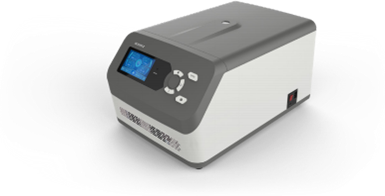

In order to meet the needs of separation and sedimentation of low temperature samples, YOUME has launched a desktop high-speed refrigerated centrifuge (HSC-2015L) . The compact HSC-2015L has the characteristics of reliable operation, ultra-low noise, high strength sealing, and fast cooling speed. And the rotor can be replaced according to the needs of different samples. The smallest centrifuge tube can reach 0.2 ml (4 * PCR plate)
and the largest centrifuge tube can reach 5 ml (12 * 5ml). Quality products.
FEATURES
Stable performance
- Ultra-low noise operation, noise <60Db;
- Strong cooling capacity, the maximum speed can also be maintained at 4°C;
- Fast cooling speed, can be reduced from room temperature to 4°C in <15min
Humanized design
- Equipped with self-diagnostic system for faults (stall, over-temperature, self-locking of door cover, etc.), and interface prompt
- Parameters can be changed at any time during operation without stopping;
- Equipped with an emergency switch, which can also open the door cover in case of power failure;
- Equipped with three types of rotors, which is convenient for customers to choose, and the airtight rotors can be removed as a whole
- Static pre-cooling mode, when the lid of the centrifuge is closed and the set temperature is lower than the ambient temperature, the compressor will automatically start cooling;
Reliable mechanical design
- More stable and reliable micro-motor electronic lock (patent design);
- The use of a two-stage shock absorption system structure (patented design) and imported motors to enhance the stability of the instrument and reduce noise
- Unique patented motor waterproof design is adopted to increase the service life of the motor; Adopt imported compressor, high stability, long service life and rapid cooling;
- SOFT brake function to prevent resuspension and protect sensitive samples;
- The centrifugal cavity is treated with a special process to have good corrosion resistance, durable and more beautiful
TECHNICAL PARAMETERS
| Model | HSC-2015L |
| Maximum rotor capacity | 24 × 1.5 / 2.0mL centrifuge tubes, 4 × PCR row tubes, 12 × 5mL (optional 5ML) |
| Maximum rotor capacity | plastic, metal, airtight |
| Relative centrifugal force | 21.400 × g (15000rpm) |
| Temperature control range | -10 °C to 40 °C |
| Keeping temperature at high speed | 4°C |
| Cooling speed | 15 minutes from room temperature to 4 °C |
| Acceleration from zero to maximum speed | 15 seconds (soft off), 45 seconds (soft on) |
| Time from maximum speed to zero | 5 seconds (soft off), 45 seconds (soft on) |
| Speed | 500-15000 in 100rpm increments |
| Centrifuge timing | 1S to 99 minutes and 59 seconds |
| Maximum power / rated powe | 1200W / 500W |
| Dimensions (length x width x height) | 385x608x318 (mm) |
