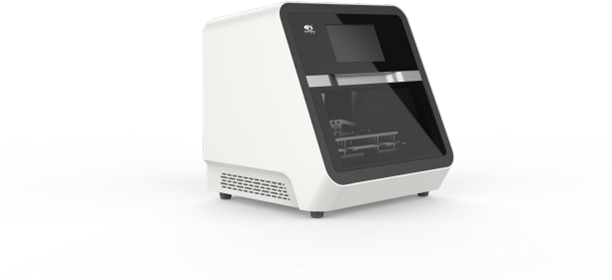

This machine uses magnetic bead separation technology, according to the selection of the appropriate kit to separate and purify nucleic acids in multi-source samples. It can simultaneously purify 32 samples. A powerful “assistant” in clinical genetic testing and molecular biology laboratory research
FEATURES
Fast and efficient
- Purified nucleic acid purity can meet the needs of various downstream experiments Nucleic acid recovery rate> 95%, magnetic bead recovery rate> 95%
- Total extraction of 32 samples can be completed in about 20-40min (depending on reagents)
Safe and reliable
- Fully automatic operation with disposable consumables to reduce personnel contact Built-in regular UV disinfection, efficient cleaning.
- Exhaust fan to effectively avoid aerosol pollution
- Prevent door opening alarm and automatically stop the movement structure during operation to ensure safe operation
Strong versatility
- Multi-speed and multi-module for selection, and can store 100 programs to meet different customer requirements
- Custom lysis andelution temperature
- Suitable for different samples, such as animal and plant tissues, serum, plasma, etc.
TECHNICAL PARAMETERS
| Model | NP-2032 |
| Sample throughput | 1 ~ 32 |
| Processing volume | 30-1000ul |
| Magnetic bead recovery rate | > 95% |
| Number of magnets | 32 |
| Purification sensitivity | Positive detection rate of 100 copies sample> 95% |
| Purify the difference between pores | CV <3% |
| Consumables | 96 deep well plate + magnetic rod sleeve |
| Cracking temperature | Room temperature to 120 °C |
| Elution temperature | Room temperature to 120 °C |
| Concussion mixing | |
| Operation interface | 7-inch touch screen, 8 shortcut program files |
| Internal program Preset | 8 programs, can store 100 programs |
| Program management | New, edit,delete, save as, etc. |
| Instrument Expansion Interface Standard | USB |
| Lighting System | Yes |
| Disinfection | UV disinfection |
| Exhaust method | Fan |
| Data storage can be stored | built-in SD card |
| Size | 422x422x470 (mm) |
