Series Ultrasonic Homogenizer

Ultrasonic Homogenizer is ultrasonic treatment equipment specially designed for dispersing materials; it has the advantages of strong power output and good dispersion effect.

 Application area

Materials chemistry: the dispersion and emulsification,and homogenization of nanomaterials,such as carbon nanotubes, graphene and other materials.

FEATURES
  • With new software ，central microcomputer centralized control
  • It adopts Backlit and LCD large screen display
  •  Ultrasonic power step with 1% continuous adjustable.
  •  With pulse and continuous operation, and with test function
  •  Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.
TECHNICAL PARAMETERS
ModelYOUME-750FYOUME-1500FYOUME-2400F
Frequency19.5-20.5 KHz19.5-20.5 KHz19.5-20.5KHz
DisplayLCDLCDLCD
Adjustable Power Range750W(20%-99%)1500W(20%-99%)2400W(20%-99%)
Optional Tip6, 15mm15, 25mmNo
Processing Volume5-700ml50-1200ml500-5000ml
Duty Ratio0.1-99.9%0.1-99.9%0.1-99.9%
Temperature AlarmYes（Prevent sample overheating）Yes（Prevent sample overheating）Yes（Prevent sample overheating）
AlarmTime, Temperature, OverloadTime, Temperature, OverloadTime, Temperature, Overload
The Size of Power Supply Chassis400*280*220(mm)400*280*220(mm)400*280*220(mm)
Standard ConfigurationGenerator host 1p, Dispersing head 1pc, Sound Abating trap 1pcGenerator host 1pc , Dispersing head 1pc, Sound Abating trap 1pcGenerator host 1pc , Dispersing head 1pc, Sound Abating trap 1pc

FEATURES

  • With new software,central microcomputer centralized control
  • It adopts 7 inch TFT touch screen display
  • Ultrasonic power step with 1% continuous adjustable.
  • With pulse and continuous operation, and with test function
  • Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.
TECHNICAL PARAMETERS
Model JY96-IIN JY88-IIN JY92-IIN
Frequency 20-25KHz 20-25KHz 20-25KHz
Display LCD LCD LCD
Adjustable Power Range 150W(5%-99%) 250W(5%-99%) 650W(1%-99%)
Accompany Tip (Φ) 6mm 6mm 6mm
Optional Tip (Φ) 3mm 3mm 2, 3, 10, 12, 15mm
Processing Volume 10-100ml 10-200ml 0.5-500ml
Duty Ratio 1-99% 1-99% 1-99%
Temperature Alarm No No No
Alarm time ，overload time ，overload time ，overload
Power Supply 220/110V 50Hz/60Hz 220/110V 50Hz/60Hz 220/110V 50Hz/60Hz
The Size Of Power Supply Chassis 430*255*300mm 430*255*300mm 430*255*300mm

JY98-IIIN, JY98-IIDN, JY99-IIDN Ultrasonic Homogenize.

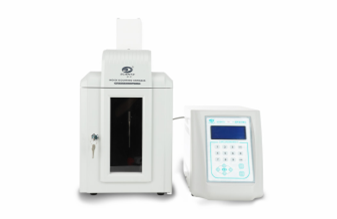

Introduction
It can be used for asepsis and ultra micro crushing, and can break the chromosomes and broken cells through the centrifuge tube.it is for the two generation sequencing DNA samples and chromatin immunoprecipitation assay sample pretreatment tailored. compared with the traditional probe type ultrasonic homognizer, the non-contact sample can be broken under the sealed container,no infection flying fog, the probe is not contacted with the sample, the cross contamination is avoided. It is more efficiency and safety. A plurality of samples can be detected at once, the experiment efficiency is higher, no need to operate probes frequently, all kinds of products are in separate sealed tubes, so as to avoid cross contamination.   Optional cooling water circulation system, to facilitate the sample is in ultrasonic bath at 4 °C, energy distribution, ultrasonic effect completely. Flexible parameter setting and experimental procedure standardization, good repeatability, and high reliability results. Gradually become an indispensable standardized tool for CHIP (chromatin immunoprecipitation) and DNA shear research platforms. The experiment has high efficiency, reliable result and good repeatability. It can handle 5ul samples at least, and it is suitable for precious samples. FEATURES
  • No aerosol generation -enhance biological safety (such as Mycobacterium, virus, etc.)
  • Eliminates the risk of cross contamination of samples
  • Eliminates dregs phenomenon of traditional probe
  • A variety of samples can be processed ,with a wide range of sample handling
  • It is suitable for all kinds of standard containers
  • It can process microscale samples, the minimum to 5μL
  • The automatic continuous rotation of the centrifuge tube makes the ultrasonic energy distribution more uniform
  • It is optional to buy low temperature water bath according to customer’s demand for a variety of diameter Eppendorf tube rotating base.
TECHNICAL PARAMETERS
Model YOUME98-III YOUME08-II YOUME08-III
Frequency 19.5-20.5KHz 28KHz±1 KHz 20KHz±1 KHz
Power 1200W(Adjustable) 1800W (Adjustable) 2200W(Adjustable)
Adjustable Power 1-99% 1-99% 1-99%
Time 1-999min 1-999min 1-999min
Duty Ratio 1 -99% 1-99% 1 -99%
Processing Volume 700ml 2L 3L
Temperature Display Yes Yes Yes
Crushing Support (0.1-2ml)*4 1-2ml*16 hole 5ml*8 hole 1 0-15ml*8 hole 1-2ml*32 hole 5ml*20 hole 10-15ml*17hole
Power Supply 220/110V±0.5 50Hz/60Hz 220/110V±0.5 50Hz/60Hz 220/110V±0.5 50Hz/60Hz

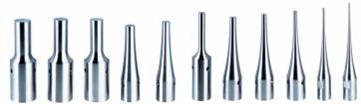

TECHNICAL PARAMETERS
Tip Model (Dia) Frequency Amplitude Power Range Processing Volume
Φ2 1/12" 20-25KHz 300um 20-250W 0.5-5ml
Φ3 1/8" 20-25KHz 250um 30-400W 3-10ml
Φ6 1/4" 20-25KHz 220um 60-650W 10-100ml
Φ10 5/12" 20-25KHz/ 150um 100-950W 100-200ml
19.5-20.5KHz
Φ12 1/2" 20-25KHz 150um 100-950W 100-200ml
Φ15 5/8" 20-25KHz/ 145um 200-950W 200-500ml
19.5-20.5KHz
Φ18 3/4" 20-25KHz 100um 200-950W 200-500ml
Φ20 3/4" 19.5-20.5KHz 60um 400-1200W 500-1000ml
Φ25 1" 19.5-20.5KHz 40um 800-1800W 500-1200ml
