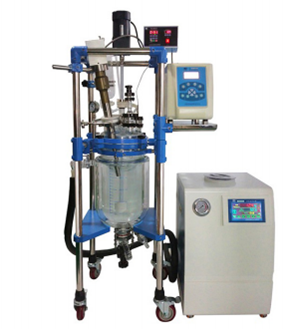

YOUME-T Series
Economical & Practical Sonicator or ultrasonic extraction machine.
YOUME utrasonic homogenizer series is designed for applying a cavitation effect in a liquid by means of ultrasonic waves.It can be used to disintergrate cells of various kinds of animals and
plants, viruses, bacteria, tissues as well as toreshape inorganic substances
APPLICATION
It can also be used in emulsification, separation, distribution , collection cleaning and nano-material preparation ,dispersion acceleration of chemical reactions, etc. It has wide applications in teaching, researching, and manufacturing in many fields such as biology, microbiology, physics, zoology, agriculture and pharmacology and been used by some labs.
TECHNICAL PARAMETERS
| Model No | YOUME-5T | YOUME-10T | YOUME-15T | YOUME-30T | YOUME-50T |
| Working Frequency | 20-25KHz | 20-25KHz | 20-25KHz | 20-25KHz | 20-25KHz |
| Ultrasonic power | 20-1000W | 20-1200W | 200-1500W | 200-1800W | 250-2400W |
| Reaction volume | 5L | 10L | 15L | 30L | 50L |
| Tip Dia | 30mm | 30mm | 30mm | 50mm | 50mm |
| Working voltage | 220v | 220v | 220v | 220v | 220v |
| Ultrasonic time | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | / | / |
| Interval time | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | / | / |
| Full time | 1-999min | 1-999min | 1-999min | 1-999min | 1-999min |
| Power setting | 1-99% | 1-99% | 1-99% | 1-99% | 1-99% |
| Duty Ratio | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% |
| Real measure Tem | Yes | Yes | Yes | Yes | Yes |
| Mixing power | 60w | 60w | 60w | 60w | 60w |
| Stirring speed | 10-600r/min | 10-600r/min | 10-600r/min | 10-600r/min | 10-600r/min |
| Shelf | Stainless | Stainless | Stainless | Stainless | Stainless |
| Additives Volumetric flasks | Yes | Yes | Yes | Yes | Yes |
| Inlet/Outle | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Cooling capacity | 500W | 800W | 1200W | 2250W | 2250W |
| Cooling temperature | -5°C-room tem | -5°C-room tem | -5°C-room tem | -5°C-room tem | -5°C-room tem |

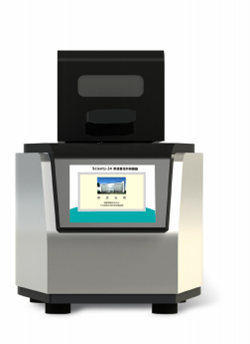

YOUME-12/YOUME-24
YOUME-24 high-throughput tissue grinder adopts 4.3” touch screen display, the parameter setting is simple and intuitive, and the operation is stable. It is capable of quickly processing multiple samples at the same time in the fields of research institutes, universities, agricultural institutes, biomedicine, and food testing Professional setting.
This product supports the extraction and purification of raw DNA, RNA and proteins including soil, plant and animal tissues / organs, bacteria, yeast, fungi, spores, paleontological specimens, etc. Supports dry grinding, wet grinding, mixed grinding and homogenization. The closed disposable centrifuge tube effectively avoids sample cross-contamination. It has the characteristics of high repeat ability, good uniformity and sufficient grinding.
FEATURES
- Supports placing the centrifuge tube directly in the adapter, and directly pre-freezing the centrifuge tube
- The grinding process is completely closed, and the samples move independently to avoid cross-contamination
- Built-in program controller, simple and convenient parameter setting
- Using silent design to reduce interference to the surrounding environment
- Equipped with a safety door lock, with the protection function of opening and stopping the stall, with high safety
- Vertical vibration, more sufficient grinding, excellent consistency for multiple grinding of the same sample
- Quick grinding of 24 samples in a short time
TECHNICAL PARAMETERS
| Model | YOUME-24 | Frequency Setting | 500-2500rpm |
| Power | 110-320V | Jig Distance | 20mm(vertical) |
| Rate Power | 180W | Sample Capacity | 24 holes for 2ml adapter |
| Time Setting | 1-9999s | Display | 4.3 inch TFT touch |
| Protection | open cover protection, emergency braking function | |
| Model | YOUME-12 | |
| Rate Power | 100W | |
| Time Setting | 1-9999s | |
| Speed setting | 500-2100 rpm | |
| Data storage | can store 50 sets of data | |
| Fixture stoke | 40mm (vertical) | |
| Sample capacity | Standard: 12ml 2ml adapter | |
| Optional: 6 holes for 5ml adapter | ||
| Optional: 10ml, 15ml, 25ml, 50ml grinding tank | ||
| Optional: Freezing adapter. | ||
| Grinding method | wet grinding, dry grinding, pre-freezing grinding | |
| Grinding beads | φ3mm 316L steel balls (100 pieces) | |
| φ6mm 304 steel balls (100 pieces),Optional zirconia beads | ||
| Display | 4.3 inch touch screen | |
| Protection | open cover protection, emergency braking function | |
| Dimensions | 225mm × 275mm × 350mm (length x width x height) | |
| Weight | ≤12KG | |
YOUME-48

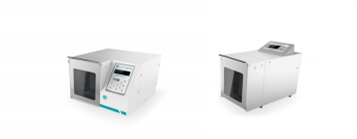

Laboratory Paddle Blenders
Germfree Homogenizer, also known as flap homogenizer, is widely used in the homogenization treatment for animal tissue and biological samples, also used for the following testing areas: food, pharmaceutical ,cosmetics, clinics molecule, toxin and bacteria, particularly suitable for preparation of micro-organism testing samples. The device is made of stainless steel and can effectively separate the surface of solid sample from a sample with germs inside.The samples are packed in germfree disposable homogenization bags, and thus is in no contact with any parts of the instrument. It has such feature as softhomogenization, no pollution,no damage,no temperature-rise,no sterilizing treatment, no need to wash the utensils. so as to meet the requirements for being fast, accurate and repeatable. This product is also suitable for homogenizing tumor tissues( such as liver, intestines cancer, stomach cancer, breast cancer) not only can to obtain large numbers of single cells(2×105 within 2 minutes) but also crush tissues cells (such as liver cells) more gently.
HIGH-THROUGHPUT TISSUE GRINDER
| Rated Power | 180W | |
| Time Setting | 1-9999s | |
| Frequency Setting | 10-70Hz,300-2100times/min | |
| Fixture stoke | 34mm(vertical) | |
| Sample Capacity | 2ml Adaptor 48hole,5ml Adaptor12 hole | |
| Display | 7inch TFT Touch Screen | |
| Protection | Open lid protection, Emergency braking function | |
| Dimension | L369*W360*H520mm | |
| Dimensions | 225mm × 275mm × 350mm (length x width x height) | |
| Weight | ≤12KG | |
TECHNICAL PARAMETERS
| Model | YOUME-04 | YOUME-09 | YOUME-11L |
| Timing | 30、180、600sor∞(continuous working Turn) | 0.1 ~ 99min(to 0.1mins step) | |
| Rap Speed | 6-9 time/Sec | 3~12times/Sec(to 0.1minutes step)Display the actual rattling number, the system | |
| Capacity | 3-400ml | 3-400ml | 3-400ml |
| Ratting Box | Stainless Steel | Stainless Steel | Stainless Steel |
| Parameter storage | NO | 1More than 10 groups | More than 10 groups |
| of multi-stage programming | of multi-stage programming | ||
| Power | 300W | 300W | 500W |
| Display | LCD | Digital | LCD |
| Temperature control | NO | NO | Room temperature–50 °C to set , temperature display |
| UV Disinfection | NO | NO | YES |
| Sterile bag | 17*30cm | 17*30cm | 17*30cm |
| Net Weight | 22.5Kg | 18.5Kg | 18.5Kg |
| Protection Device | With auto-stop anti-trap feature, Removable windows and adjustable slap board, toughened glass security door | ||
| Dimensions | 400*420*260mm | 420*245*340mm | 420*245*340mm |
JG-IA ULTRA HIGH PRESSURE HOMOGENIZE
PROCESSOR CELLPRESS
The highest pressure of JG-IA is 256Mpa (37120PSi), which can satisfy many cell wall breaking and nano homogenization/dispersion of sample, and realize effective temperature control at the same time
- Continuously adjustable pressure,0-37,120 psi
- Simple operation, continuous circulation of sample, no exhaust, directly feed
- Physical methods crushing to avoid external pollution
- Convenient maintenance
- The safety factor is high, and the circuit has overload automatic protection function Many kinds of cell walls and samples are satisfied, and no specific for samples
FEATURES
E.coli and yeastbroken, animal andplant cells broken, the crushing rate of more than 95% one time Yeast / Ganoderma lucidum spore and other fungi broken; cyanobacteria / green algae and other algae broken;
It can be homogeneous emulsions, liposomes, microemulsions, solid and liquid suspensions up to 100nm, with uniform particle size distribution.
TECHNICAL PARAMETERS
| Model | JG-IA | Capacity | Max 50ml/time, Continuous increase samples |
| Power Supply | 380V | Max pressure | 256Mpa(37120PSi) |
| Pressure device | Hydraulic System | Max pressure stroke | 170mm |
| Sample tube | Stainless steel | Pressure plate speed | 6.8mm/s |
| Pressure tank size | Φ25*150mm | Dimensions | 555*600*1170mm |
YOUME-150 High Pressure Homogenizer
TECHNICAL PARAMETERS
| Maximum working pressure | 1200bar/120Mpa/17400PSi |
| Maximum design pressure | 1500bar/150Mpa/21750PSi |
| Maximum capacity | 12L/h,25L/h two models machine |
| Minimum capacity | 30ml |
| Cooling | Built-in cooler |
| Motor Power | 1.5KW/380V/50Hz |
| Dimensions | L800*W460*H450mm |
| Weight | 120Kg |
HIGH PRESSURE HOMOGENIZER 8435 High pressure homogenizer using the material in the special role of plunger into the valve which it is adjustable pressure, after a certain width area), transient voltage loss of material at high velocity (1000-1500 M / sec).
YOUME-207A High pressure homogenizer
YOUME-207A EHV Homogenizer Uses the high-pressure energy generated by the servomotor power to release the material instantaneously through the slits to break, homogenize and emulsify the material under the action of high shear, cavitation and collision effects, Decentralized effect, and maintain a constant pressure working condition. Material particle size can be uniformly refined to 100nm or less, the fragmentation rate of more than 95%, can be used for fat emulsion, liposomes, cosmetics, lipid nanoparticles, nano suspension, fermenter sample processing, and bioengineering laboratory, medicine Plant and other large-scale processing of E. coli, yeast and other samples of the broken, biological engineering and bio- pharmaceutical industries such as R & D and production of standard equipment can also be used for dairy products, food and beverage, fruit juice, pharmaceuticals, biological and other industries for emulsification, Homogenization treatment. The machine has a built-in cooling circulation system, which directly cools the homogenized head. All materials contacting the material pipe are 316L stainless steel. And the optional homogeneous valve, the product has the pressure, small size, lightweight, easy to operate, intuitive display, high efficiency, a large sample size and so on. Has applied for invention patents and utility model patents.
| The maximum working pressure | 1800bar/180Mpa/26100psi pressure adjustable |
| The maximum design pressure | 2070bar/207Mpa/30015psi |
| Maximum processing capacity | 15 L/H (250ml/min) |
| Minimum capacity | 15ml |
| Material residue 0ml | No(0ml No residue) |
| Motor power | 3.0Kw/380V/50Hz |
| Dimensions | L1070*W340*H460mm |
| Weight | 100KG |
| Maximum feed particles | 100 microns |
| Flow control Inverter control | Adjustable flow |
| Display | Using PLC control and 7″ touch display |
FEATURES
- The design of homogeneous pressure 0~207Mpa arbitrarily adjustable to meet nano-pharmaceutical customer needs;
- The minimum sample handling capacity 15ml;
- The key components used in Germany, Japan imported, long service life;
- The host power used in Japan imported servo motor to provide power, stable and reliable performance, long service life.
- All the materials in contact with the material with 316L stainless steel, the pipe part of the mirror effect of polishing to prevent the sample residue; in line with food and drug requirements
- Automatic injection, continuous work, no exhaust;
- Using physical homogenization method, no material residue;
- With seals removal special tools to facilitate replacement;
- Simple operation, maintenance services more convenient, cost-effective;
- Pressure, temperature sensors using the German brand pressure sensor optional thermostat bath
- Built-in cooler configuration cooler, do not consume materials, control homogeneous temperature
- Historical data storage, query
- With temperature alarm and automatic protection
- Real-time pressure and temperature curve display
